Part Number.
PSPD-T1550-D90
PSPD : PhoSem PD | T : Telecom | 1550 : λ 1550nm 대역 | D90 : Aperture 90um
| Parameter | Symbol | Ratings | Unit |
|---|---|---|---|
| Forward current | IF | 10 | mA |
| Reverse voltage | VR | 20 | V |
| Operating temperature | TO | -40 ~ 85 | ℃ |
| Storage temperature | TS | -40 ~ 100 | ℃ |
| Parameter | Symbol | Min | Typ | Max | Unit | Condition |
|---|---|---|---|---|---|---|
| Aperture size | D | – | 90 | – | um | – |
| Wavelength | λ | 1210 | – | 1620 | A/W | VR=3.3V, λ=1550nm |
| Responsivity | R | – | 0.8 | – | A/W | VR=3.3V, λ=1310nm |
| – | 1 | – | A/W | VR=3.3V, λ=1550nm | ||
| Dark current | ID | – | – | 1 | nA | VR=5V |

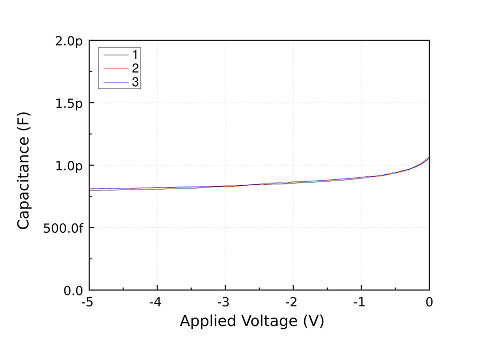

| Capacitance | C | – | – | 1.5 | pF | VR=3.3V |
| Breakdown voltage | VBR | 20 | – | – | V | 10nA |
| Voltage (Forward) | VF | – | 0.8 | – | V | 3mA |

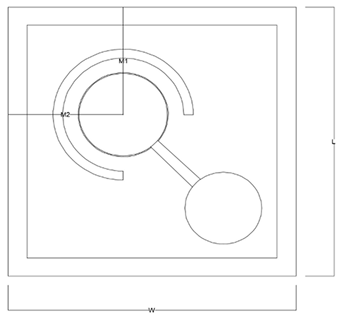

| Item | Dimension | Unit |
|---|---|---|
| Length | 300 (±10) | um |
| Width | 300 (±10) | um |
| Height | 200 (±20) | um |
| PAD size | 80 | um |
| Aperture (Window) size | 80 | um |
